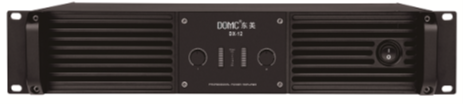

Product Specifications:
Rated Output Power: 1200W × 2 (stereo, 8Ω)
Rated Output Power: 1900W × 2 (stereo, 4Ω)
Rated Output Power: 2300W × 2 (stereo, 2Ω)
Rated Bridged Output Power: 3800W (bridged, 8Ω)
Rated Bridged Output Power: 4500W (bridged, 4Ω)
Power Supply Requirement: AC 220V (AC 110V customizable)
Structure: 2U metal chassis design
Number of Channels: 2CH
Total Harmonic Distortion + Noise (1kHz, -10dB, 4Ω): <0.1%
Frequency Response: 15Hz-30kHz: ±1dB
Sensitivity: 20dB, 23dB, 26dB, 29dB, 32dB, 35dB, 38dB, 41dB (8 selectable options)
7 LED Indicators (4 signal indicators, 1 power indicator, 1 clipping indicator, 1 protection indicator)
Signal-to-Noise Ratio: ≥100dB
Damping Factor: >240 (1kHz, 8Ω)
Slew Rate: 28V/μs
Output Stage: Class-D
Input Connectors: Balanced XLR male & female connectors
Output Connectors: SPEAKON connectors, binding posts
Heat Dissipation System: Dual variable-speed fans, front-to-back airflow
Protection Functions: Overheating protection, short-circuit protection, DC output protection
Dimensions (W×H×D): 483×88×370mm
